Electrical Ratings
Voltage: Input: 125V AC; Output: 5V/9V/12V DC
Current: Input: 20A; Output: 3A / 2.22A / 1.67A
Max Load: Input: 2500W; Output: 20W
Interface
Input Plug: Hardwired

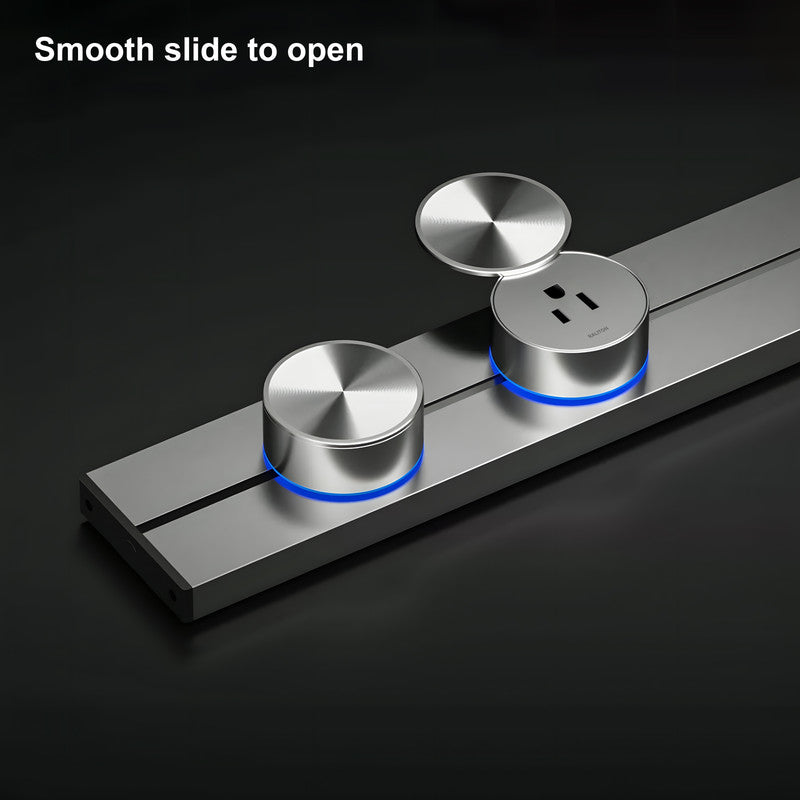

Output Receptacle: Type B (NEMA 5-15R)
Tamper Resistant: Yes
Functionality
Control Method: Rotary separate control
Smart Function: Yes
Structure
Track Length Options: 22 in. / 30 in. / 40 in.

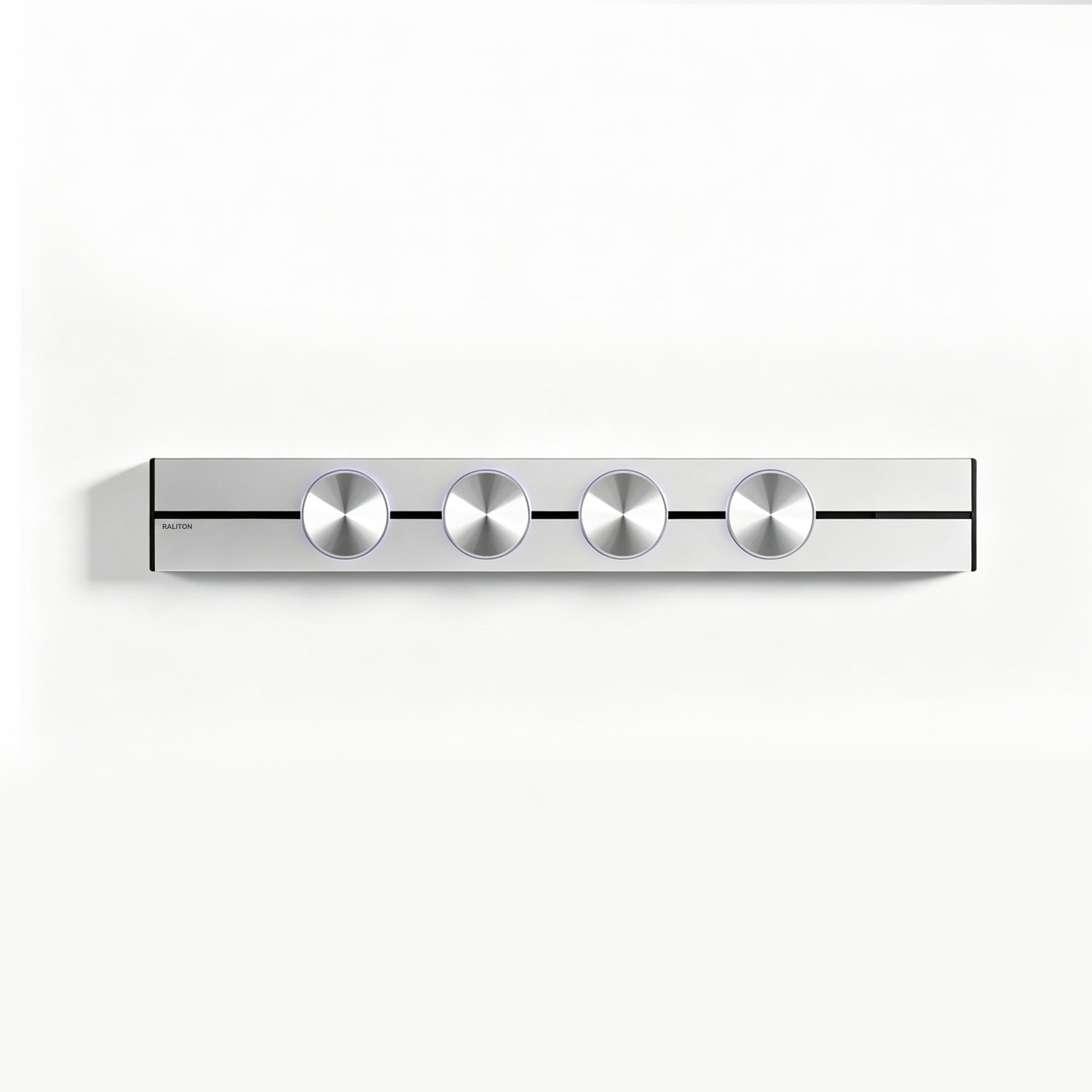

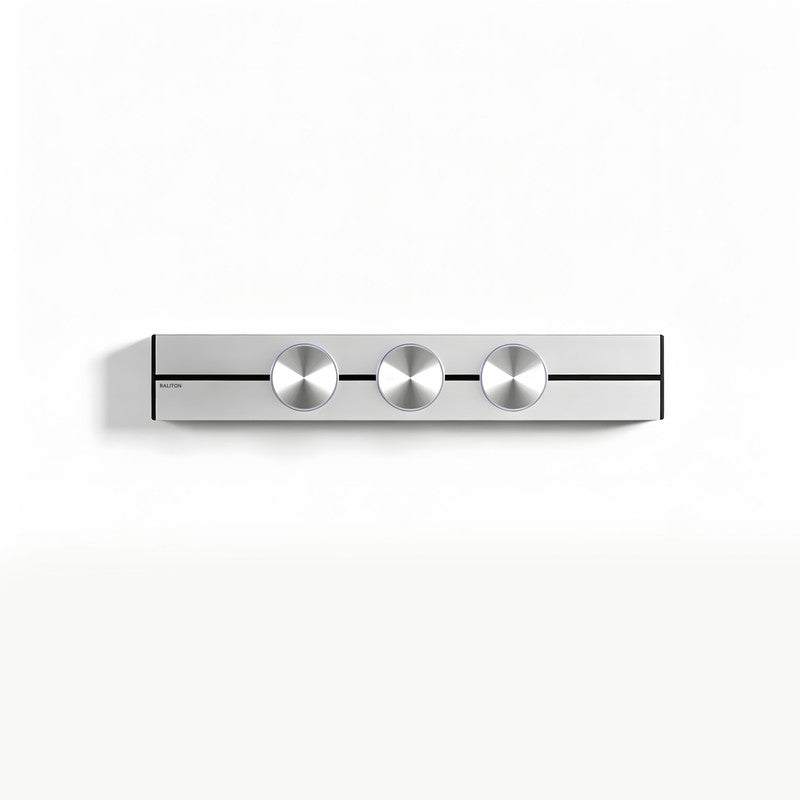

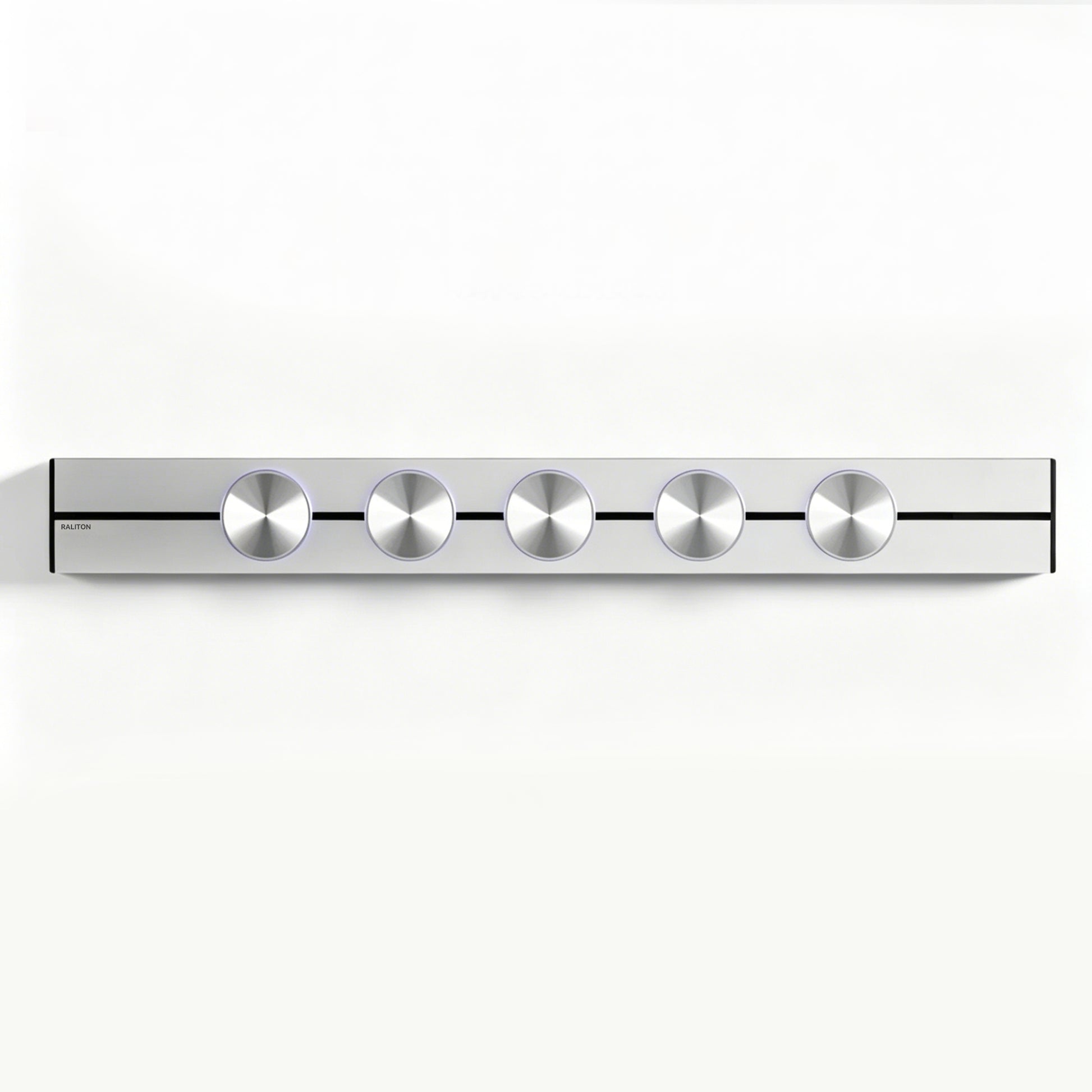

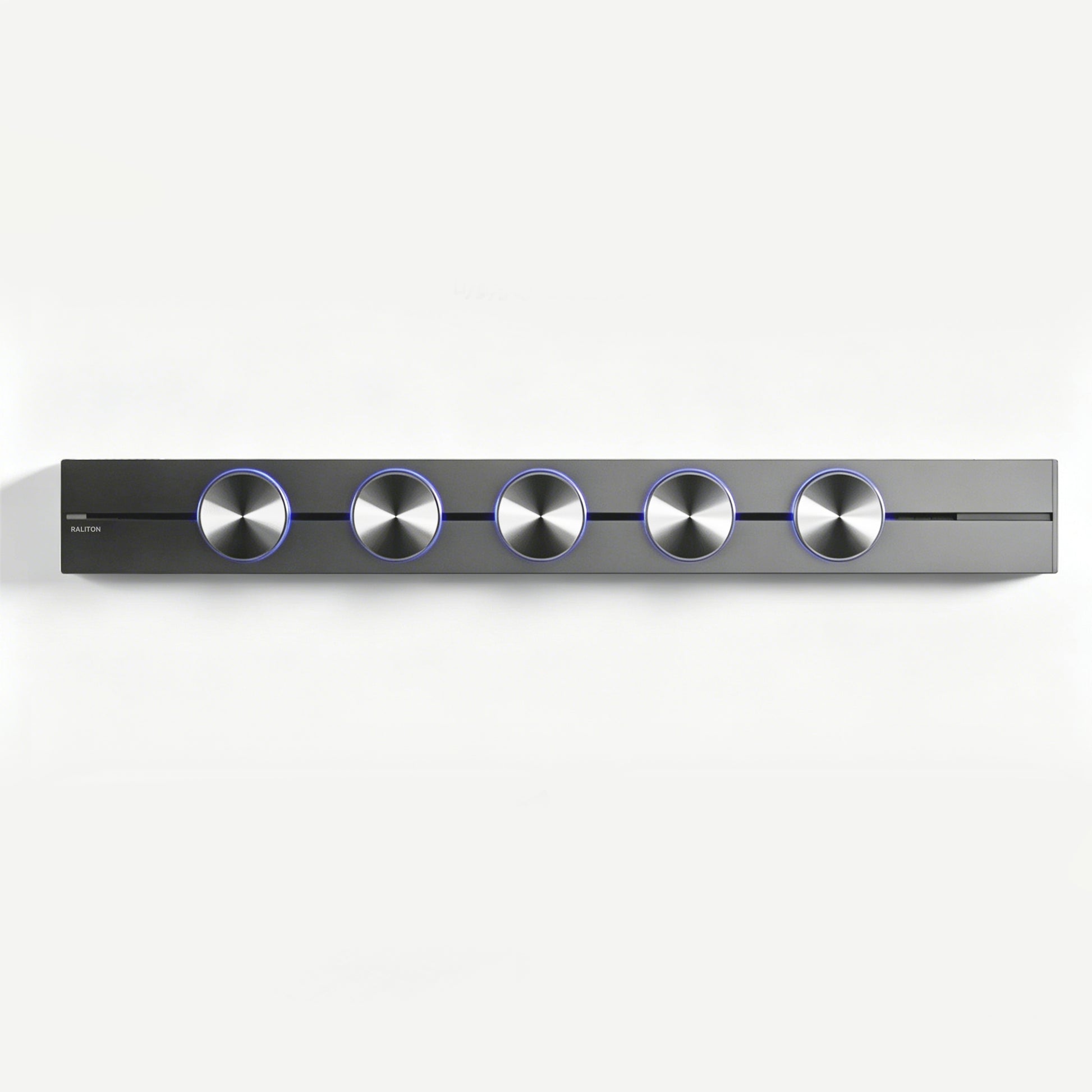

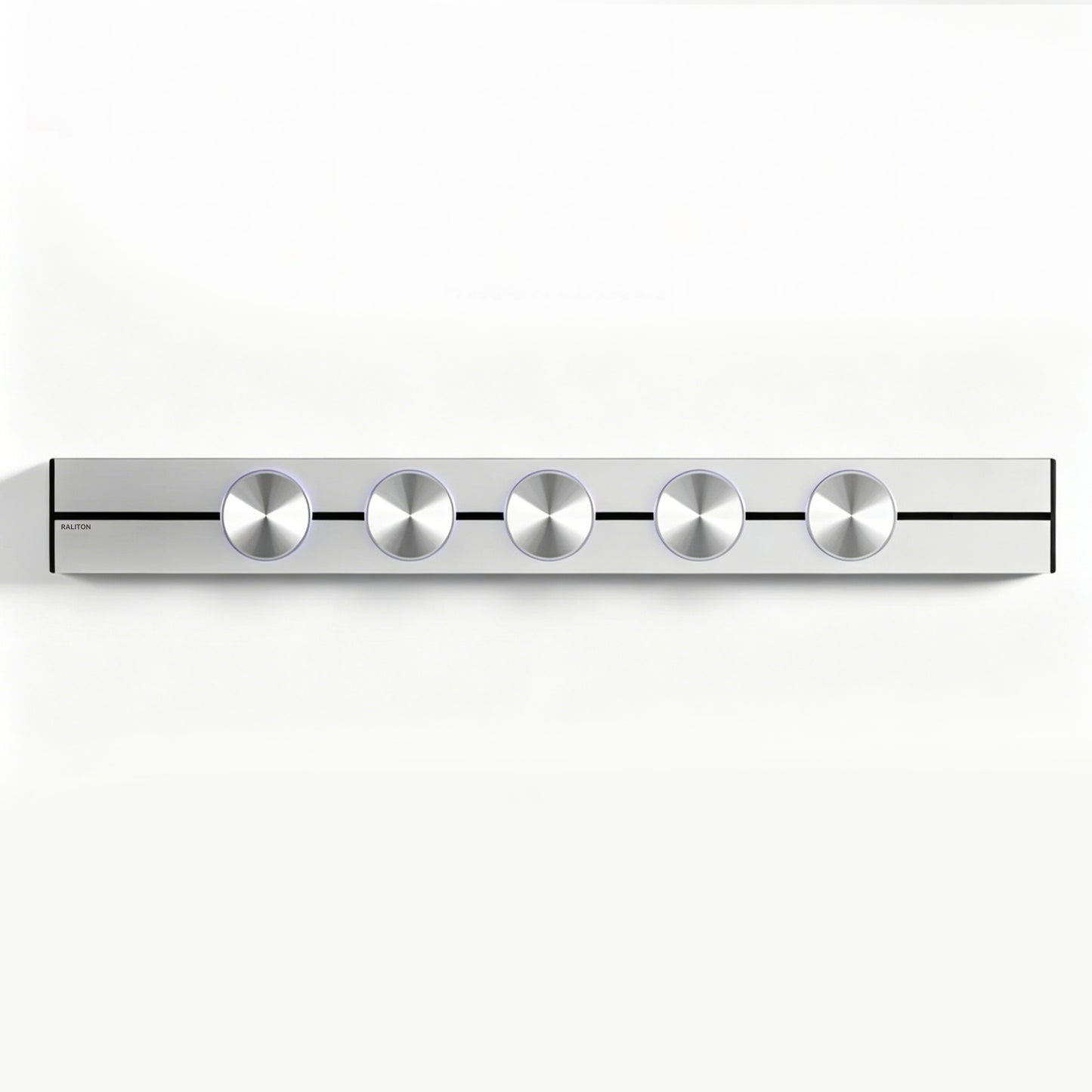

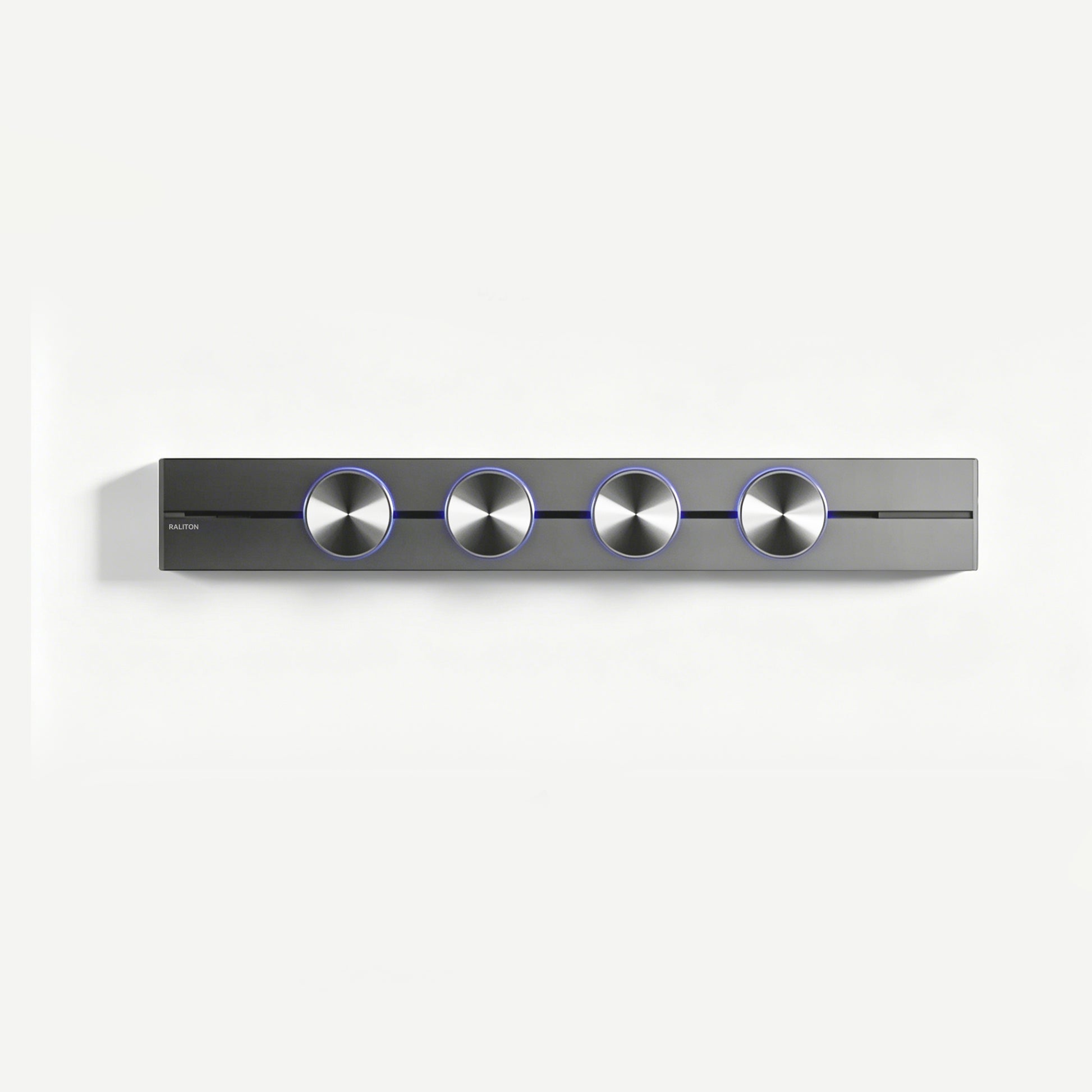

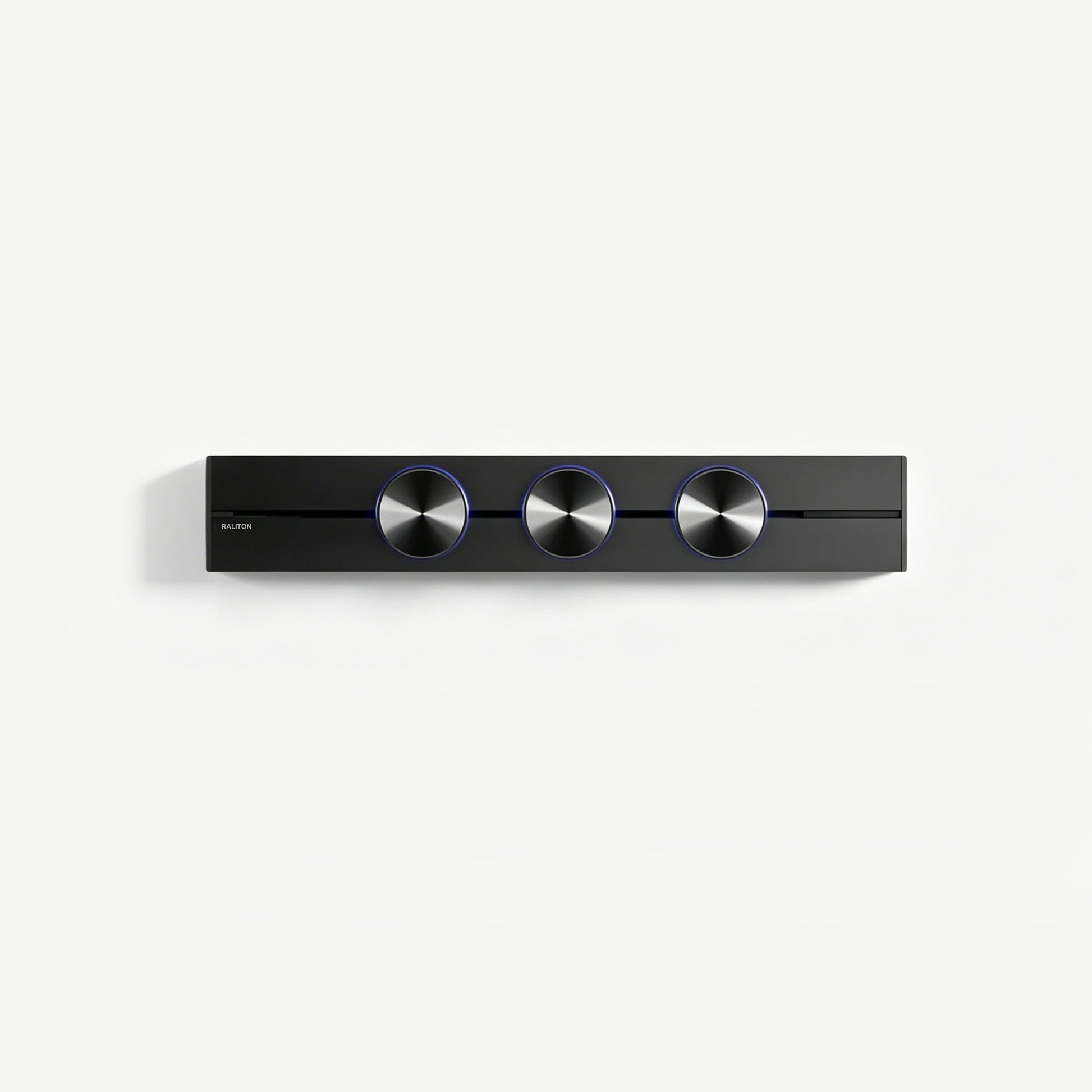

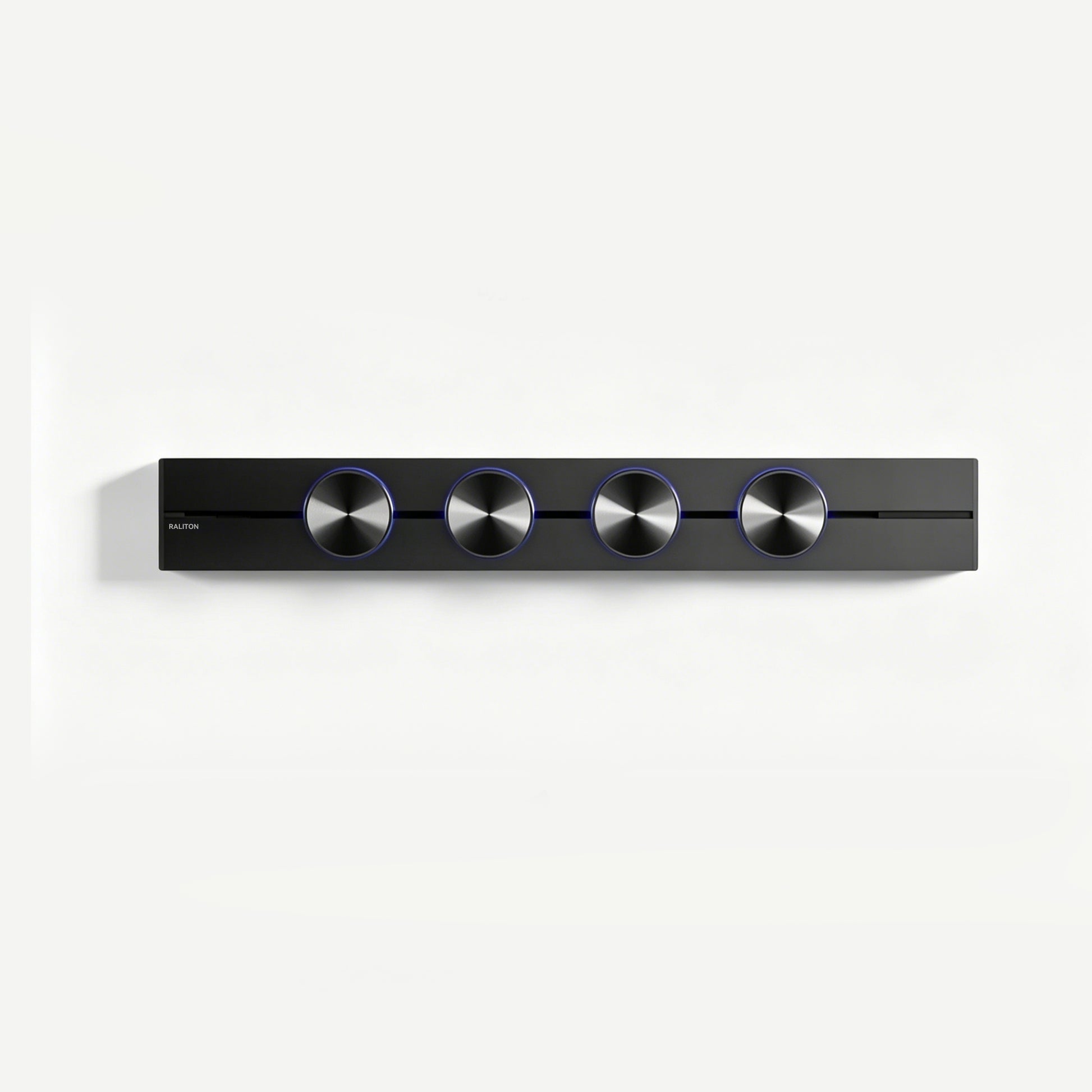

Adapter Quantity: 3 / 4 / 5
Compatible System: Yes
Modular System: Yes
Material
Track: Aluminum Alloy
Adapter: Polycarbonate
Protection & Durability
Surge Protection: 1,500 Joules

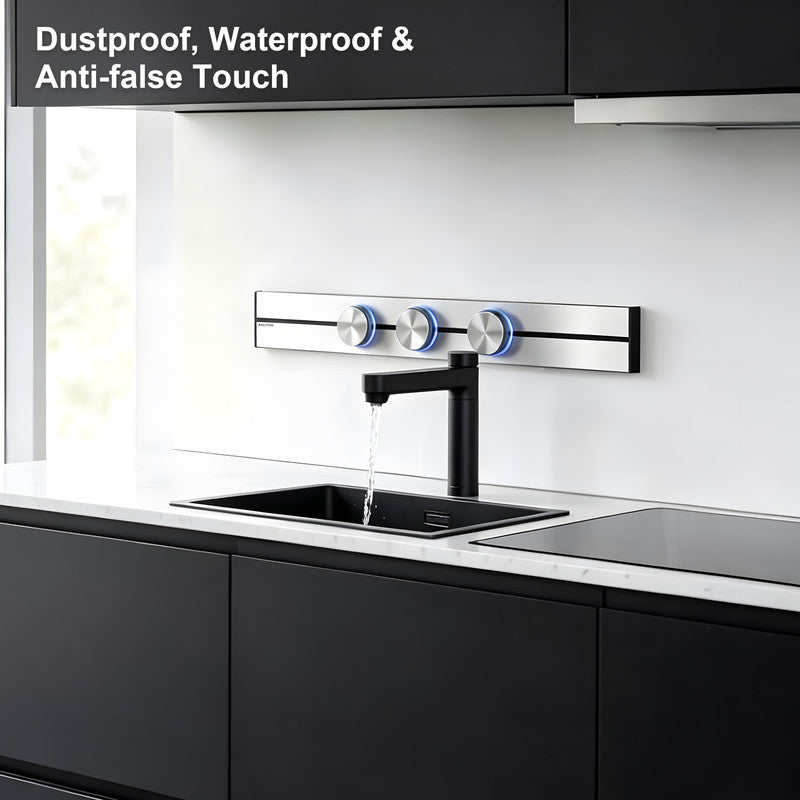

IP Rating: IP44
Certification: FCC, CE & RoHS Certified
Installation Safety
Connection Type: Hardwired

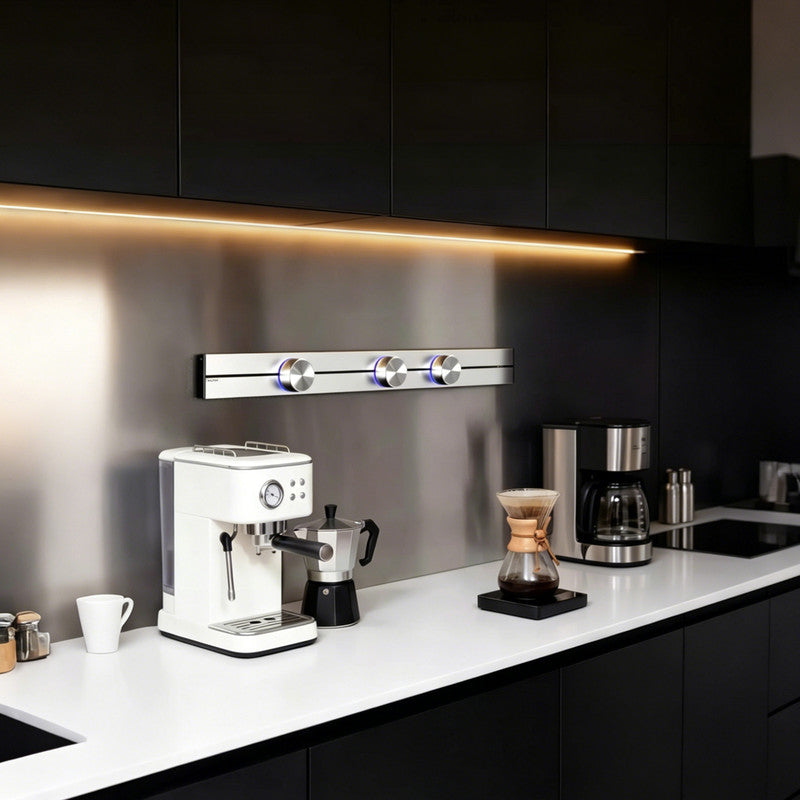

Mounting Type: Surface Mounted
Item Dimensions (L x W x H, in.)
22-inch Track: 21.7 x 3.5 x 0.7
30-inch Track: 29.5 x 3.5 x 0.9
40-inch Track: 39.3 x 3.5 x 0.9
Adapter (All): 2.7 x 2.7 x 1.2
Item Weight (lbs)
22-inch Set: 1.5
30-inch Set: 1.8
40-inch Set: 2.0
Package Dimensions (L x W x H, in.)
22-inch Set: 25 x 5 x 3
30-inch Set: 31.5 x 5 x 3
40-inch Set: 41.5 x 5 x 3
Package Weight (lbs)
22-inch Set: 2
30-inch Set: 2.3
40-inch Set: 2.5
